K-series Squarebody 4wd "Universal" Transmission Crossmember

Squarebody K-series (4wd) Heavy Duty, Fabricated, "Universal" Transmission Crossmember - designed for ground clearance yet with enough driveshaft clearance for most applications.

1. The frame mounting holes were specifically designed to NOT line up with any factory holes - it is assumed that you will need to drill those holes wherever they land in your specific application.
2. The transmission mount holes are designed for two 3/8" (10mm) studs/bolts with a spacing of approximately 4-7/16" (112mm).  Please verify that the mount you are going to use will work (or understand that you will need to drill/slot new holes for it!)

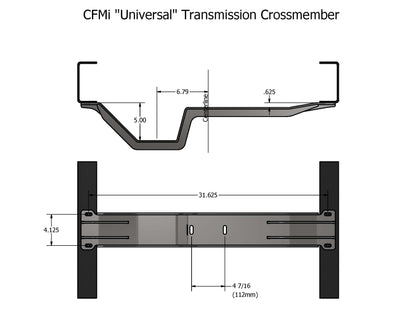

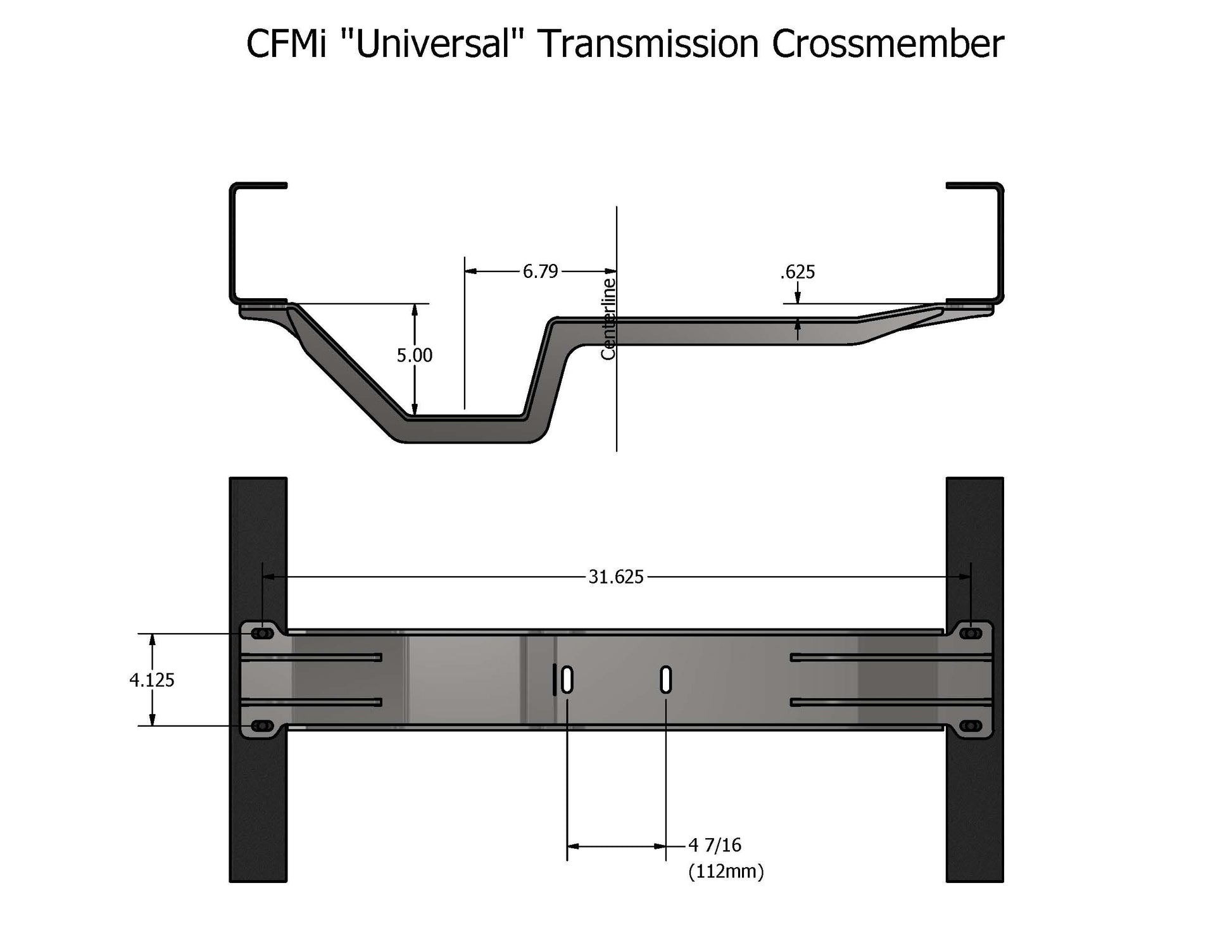

3. Please check the picture for any other important dimensions of this crossmember to verify it will work in your situation!

*This crossmember will require exhaust modifications, drilling frame holes, and likely additional mods as well,

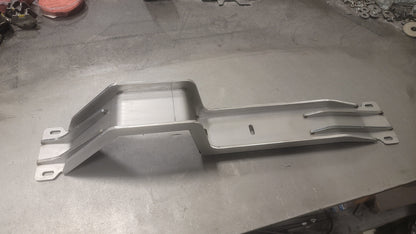

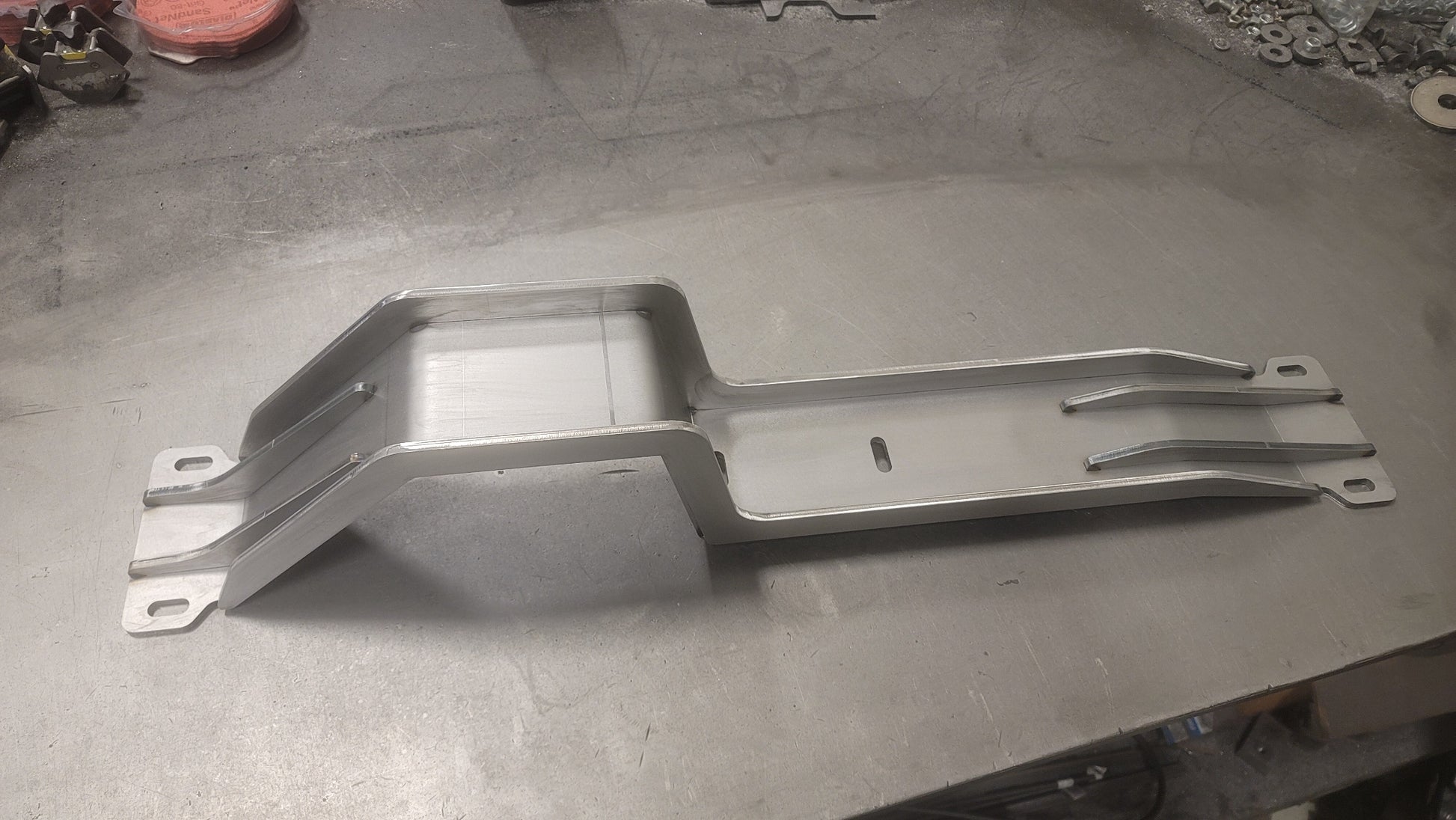

**COMES RAW STEEL, ready for paint or powdercoating
