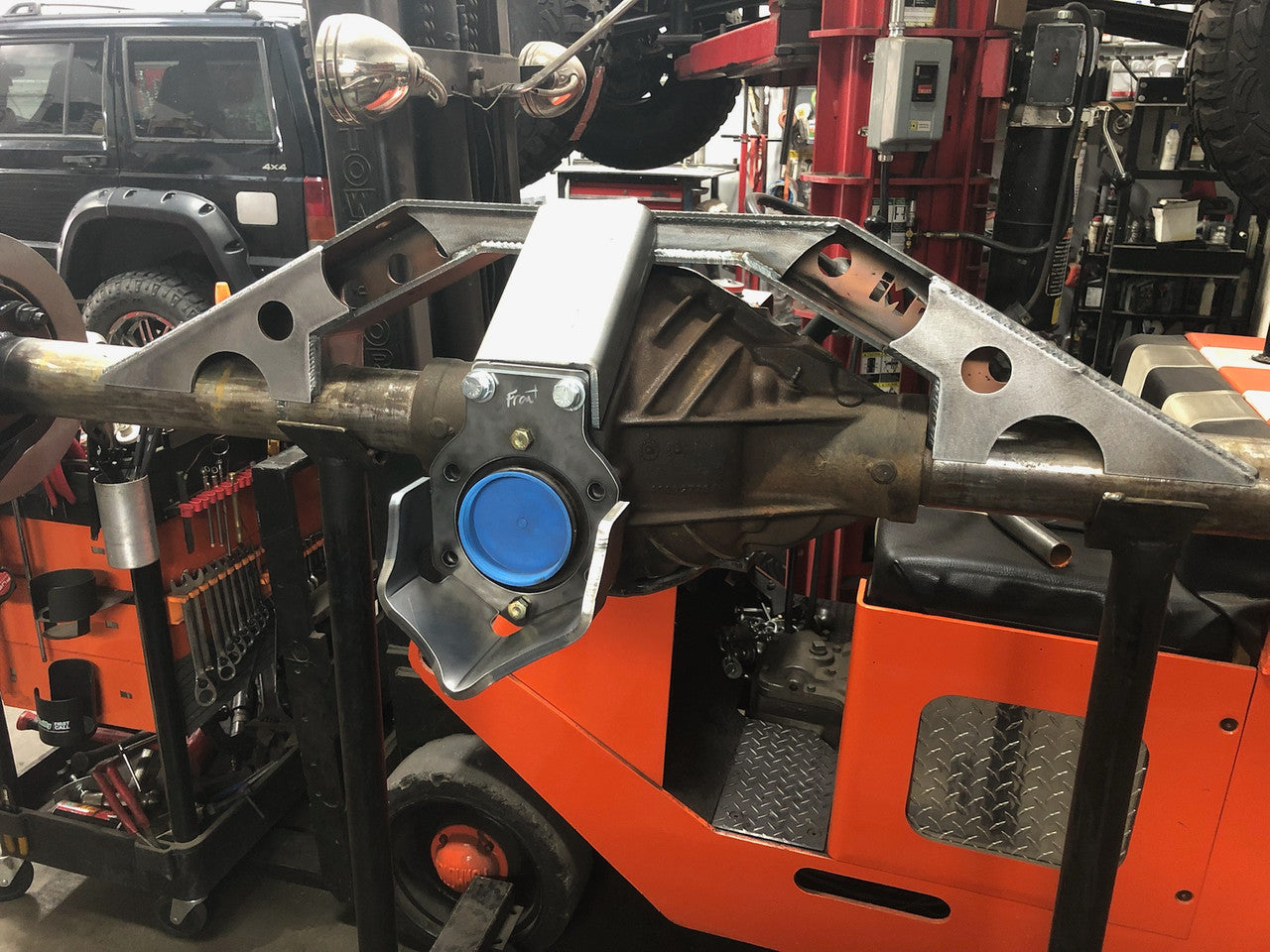

GM 14 Bolt Full-Float Axle Truss

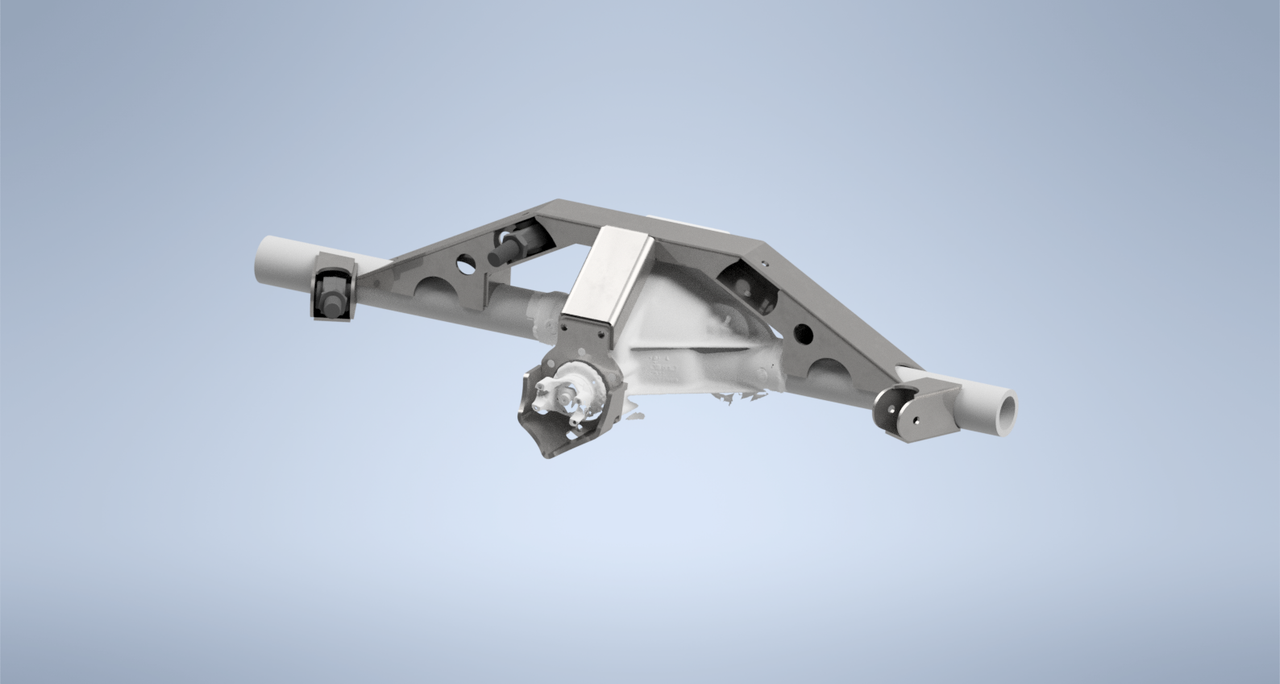

GM 14 Bolt Full-Float Rear Axle Truss System - Low-Pro design, for dual triangulated 4-link configurations.

The full system includes the axle truss, lower link mounts, and an Ultra-Duty Pinion Guard with tie-in to the truss.

• Boxed design for utmost strength
• Truss is made from formed 1/4" P&O Mild Steel
• Pinion Guard Tie-in made from 1/4" P&O Mild Steel
• Pinion Guard itself is massive formed 3/8" Thick Steel
• Designed for Joints with a 2-5/8" mounting width and a 9/16" bolt size
• Lower Link Mounts made from 1/4" P&O Mild Steel, set at 24 degree angle for triangulated lowers
• Comes as flat and bent plates, ready for you to weld
• We suggest painting the inside with weld-thru primer before welding the final side, as it is difficult to paint the inside of the boxed areas after welding.
• Axle not included!
